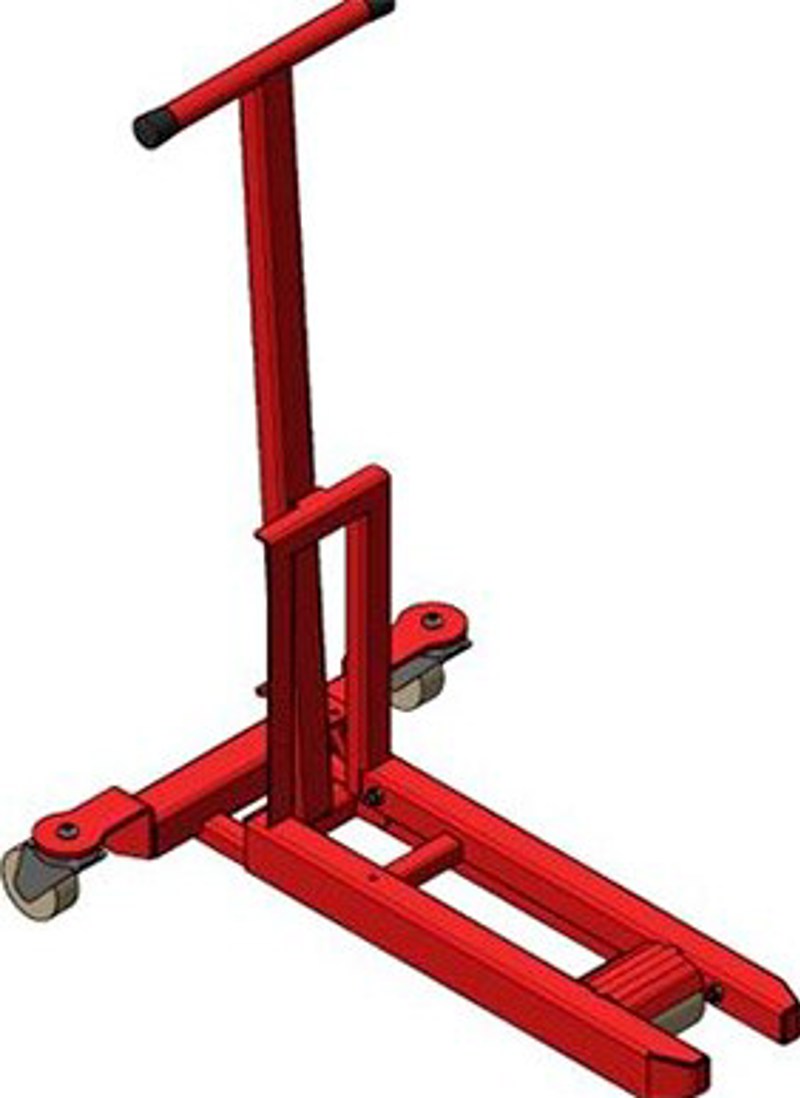

Mechanical display pallet truck

Model LHM 200

This pallet truck is specially made for handling pallets in supermarkets and small stores. It is ideal for handling quarter and display pallets.

This mechanical pallet truck is manufactured in painted steel of the highest quality.

It is stable, easy to maneuver, and weighs only 16 kg.

Details such as the axle, screws and nuts are carefully chosen to ensure a very long life.

The pallet truck has a mechanical lifting/lowering system. By moving the handle once you can lift the forks to their highest position, where they are locked automatically.

The lowering function is foot operated and placed on the crossmember of the chassis. It gives simple, easy, trouble-free handling when you lower the truck.



On this model (LHM 200), the steering wheels can turn 360 degrees.

The steering wheels are made of soft polyurethane.

The load rollers are made from Vulkollan®.

The wheels ensure that the pallet truck is silent when in use.

Data Sheet

Product Details

Load capacity:
200 kg
Fork spread:
200 mm
Fork lenght:
605 mm
Lowered height:
88 mm
Highest position:
112 mm
Turning angle:
Steering wheel:
Ø80 mm
Load roller:
Ø82 mm
16 kg
