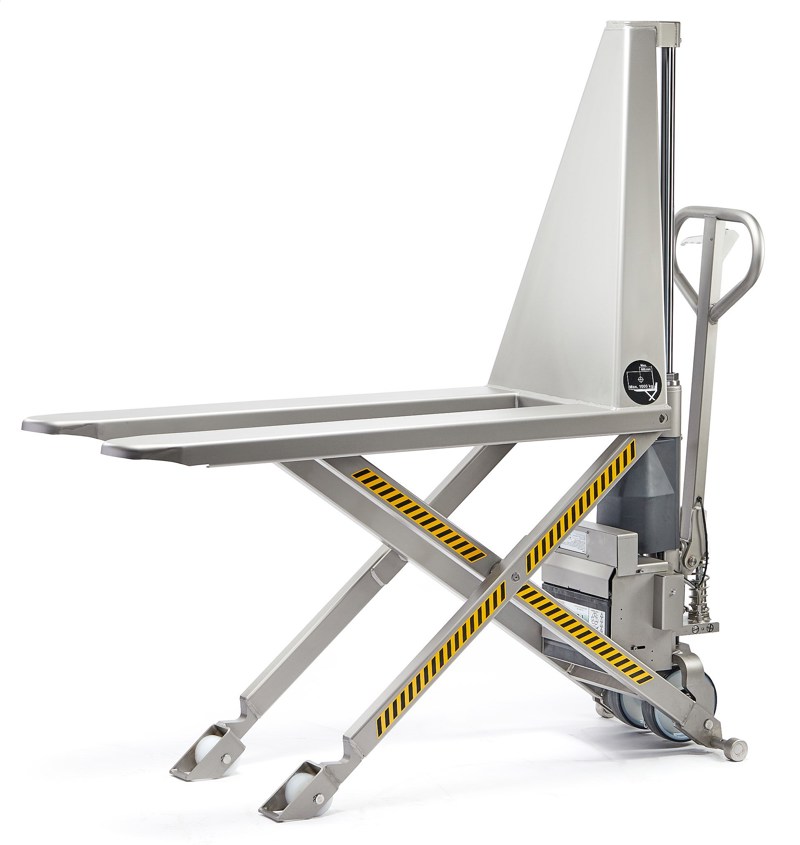

Highlifter - Semi Stainless

Model 116-179R/Q

The stainless steel high lift pallet truck has the chassis, drawbar, shafts, pins, pistons and screws made ​​of stainless steel. The pump is metallized steel . Scissors and battery box are hot dip galvanized.

For many years, the high lift pallet truck has been used in many types of production and distribution companies

The stainless steel high lift pallet truck has the chassis, drawbar, shafts, pins, pistons and screws made ​​of stainless steel. The pump is metallized steel . Scissors and battery box are hot dip galvanized.

The high lift pallet truck is unique to the loading and unloading of the light ends of the pallet , because it is possible to adjust to an ergonomically correct working height by raising or lowering the load. In this way, an investment in a high lift pallet truck , helping to increase efficiency and ensure a better working environment for the operator.

We can offer two different high lift pallet trucks, with a capacity of 1000 kg:

Manual lifting with ' Quick ' boost function which operates by load under 100 kg .
Electric high lift pallet truck , recommended that require many lifts in the course of a working day.

On both models lowered the load of a handle in the lower lever , either slowly or quickly , since lowering valve provides an infinitely variable lowering speed

Datablad

Product Details

Capacity:
1000 kg.
Outside width:
560 mm
Fork length:
1200 mm
Fork height lowered:
90 mm
Lift height pr. pump strokes:
Up to 100 kg:
28 mm
Over 100 kg:
14 mm
Lowering speed :
Variabel
Steering wheels:
Poly
Load wheels:
Nylon
Weight:
122 kg.

Options

  • Build in charger
  • Outside fork spread: 480 mm & 685 mm.
  • Fork length: 700* to 2000 mm
  • Stainless steel
  • Galvanized
  • Powered for compressed air
  • Powered for 220 V from mains
  • Parking brake
  • Automatic lift stops with photocell
  • Different color
  • Different wheel variants
  • * The lift height is reduced at fork length less than 1200 mm
