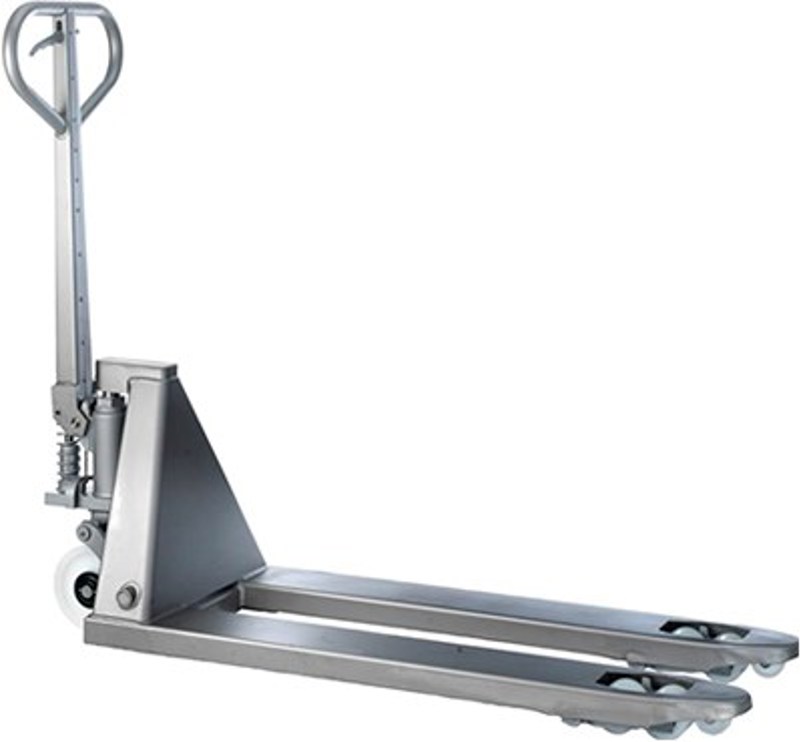

Pallet truck - Semi stainless

Model 115-449R

In semi stainless steel pallet trucks are frame , drawbar , axle bolts and pins made ​​of stainless steel , while the individual parts are hot dip galvanized . On galvanized pallet trucks are frame and drawbar galvanized and shafts and pins are in stainless steel.

In semi stainless steel pallet trucks are frame , drawbar , axle bolts and pins made ​​of stainless steel , while the individual parts are hot dip galvanized . On galvanized pallet trucks are frame and drawbar galvanized and shafts and pins are in stainless steel.

The wagons can withstand most occurring chemicals , such as moisture and detergents. Stainless steel and galvanized models like lacquered models a simple and reliable hydraulic system with built-in automatic Exemption wait.

Semi stainless steel or galvanized pallet trucks are manufactured to food industry and satisfies all hygiene requirements.

Datablad

Product Details

Capacity:
2500 kg
Outside width std :
520 mm
Fork length std:
1130 mm
Lowest fork height:
85 mm
Lifted height unloaded:
200 mm
Width on fork:
160 mm
Steering angle :
220°
Steering wheel:
Ø180 mm
Load wheel:
Single eller Boogie
Wheel standard:
Nylon
Lifting high per stroke:
11 mm
Weight:
70 kg.
